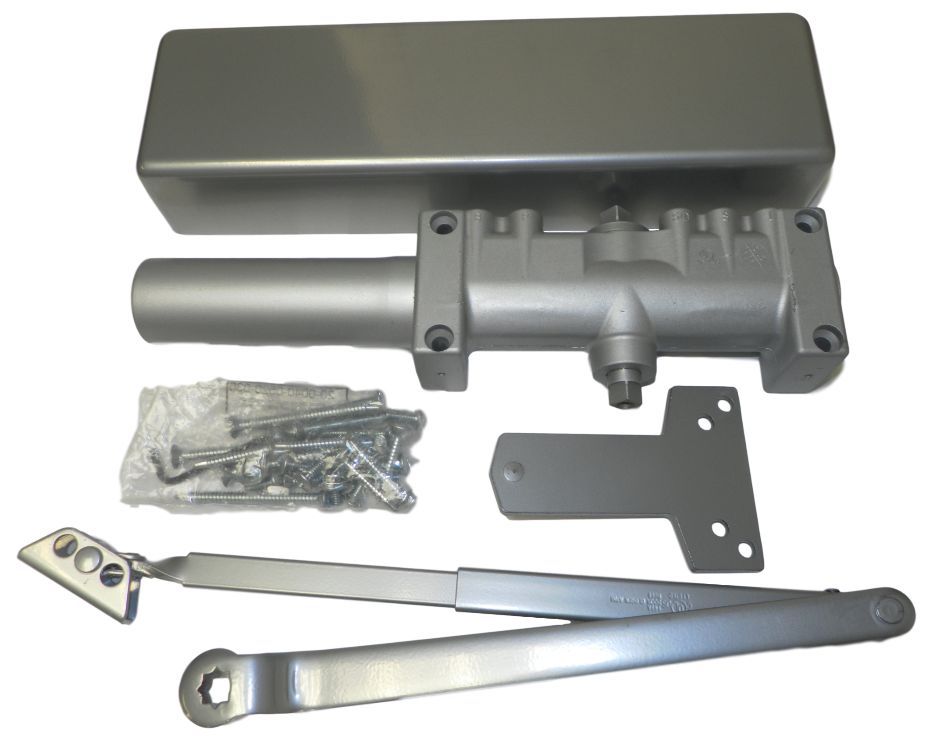

Norton Assa Abloy 7500M 689 Door Closer 7500 Series
Norton Assa Abloy 7500M 689 Door Closer 7500 Series
Features:- Tri-Style packaging; tri-packed for regular, top jamb or
- parallel arm mounting
- Non-handed
- Rack-and-pinion design
- Cast aluminum body
- Adjustable spring sizes 1-6
- 2-3/16 (56mm) projection
- 1-1/2 (38mm) diameter piston
- 5/8 (16mm) diameter pinion journals
- Staked valves
- Corrosion resistant model (non-hold open only).
- Specify 7500M
- Metal cover. Specify M suffix
- Lead lined metal cover. Specify MLL suffix
- Retrofit plates
- NorGlide fluid
- Molded plastic cover
- All standard arm applications allow doors to swing 180,
- conditions permitting
- Self-drilling screws
- Full-size template
- Application specific mounting: Regular (S), Top Jamb (JS) or
- Parallel (P) mount
- Heavy-duty arms: Regular Rigid, Parallel Rigid, CloserPlus®,
- CloserPlus Spring™ and Unitrol®
- Slide Tracks: push or pull side mounting
- Exceeds 25 million cycles (witnessed and verified by UL)
- 25-year limited warranty
- Functions
- Standard, separate and independent, latch, sweep and
- backcheck intensity valves
- Backcheck positioning
- Enhanced backcheck. Specify EBC suffix
- Delayed action with pressure relief valve
