Seiko Instruments SSP-T7-F 32.768KHZ 9pF Semi-Conductor 5-Pack

Product Description

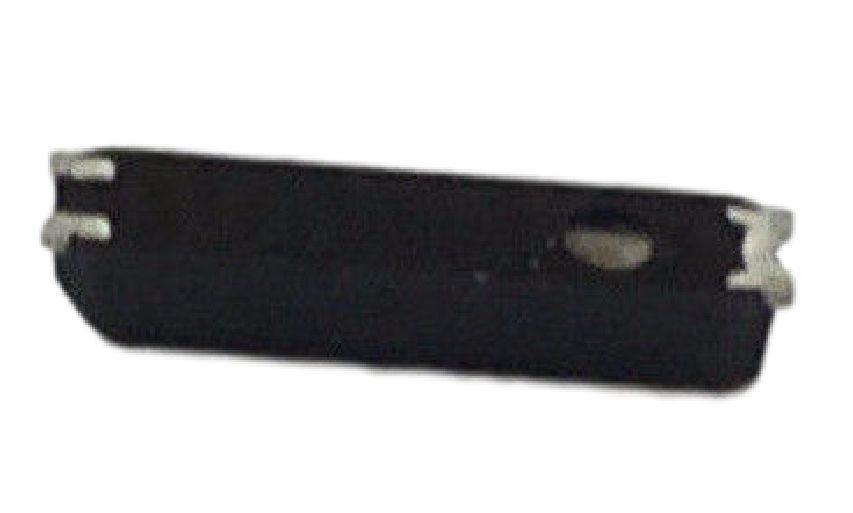

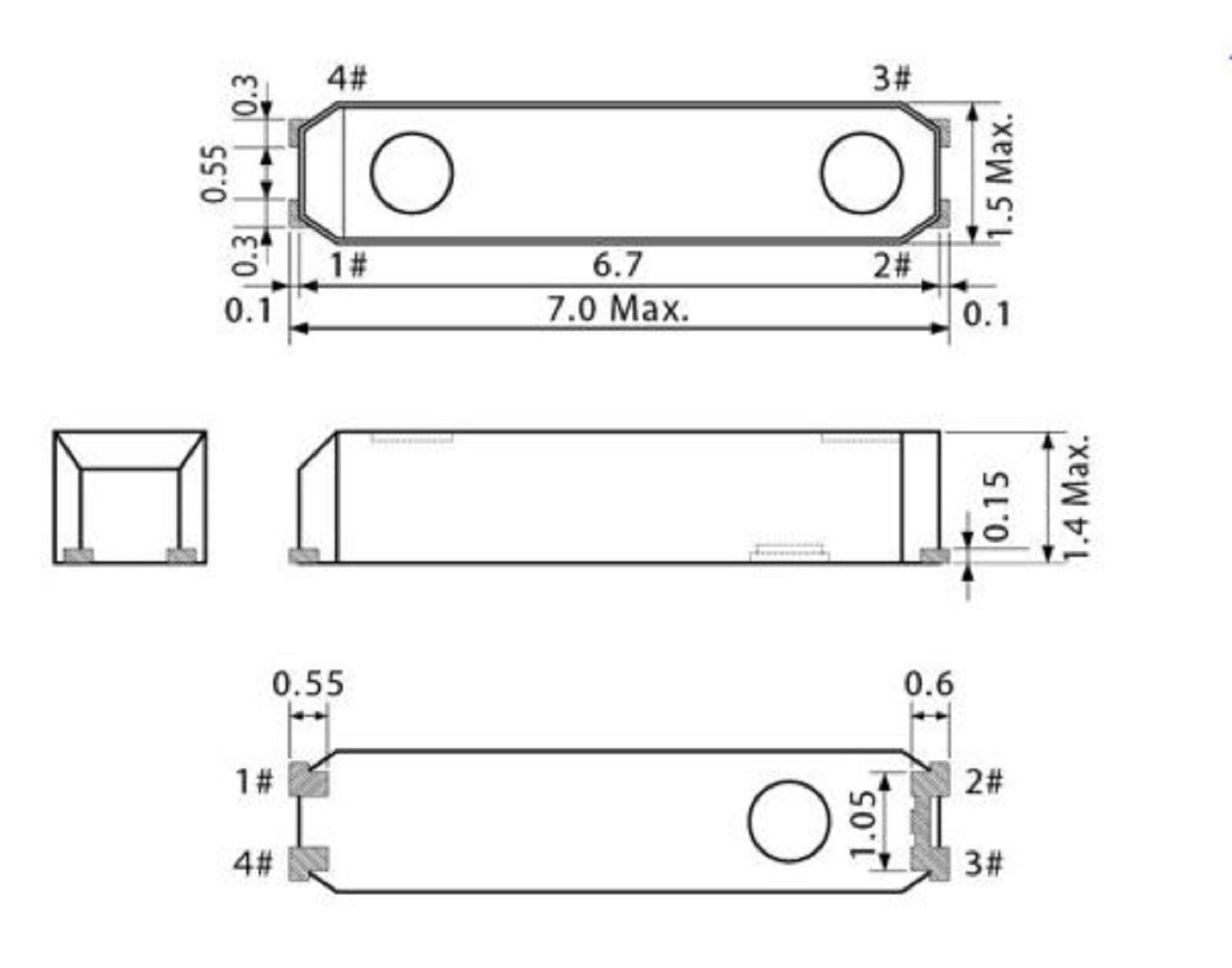

The Seiko Instruments SSP-T7-F 32.768 kHz Crystal Oscillator is a thin, surface-mount device designed for precision timing in compact electronic applications. With a height of only 1.4 mm, it features a 12.5 pF load capacitance, ±20 ppm tolerance, 0.1 µW drive level, and 65 kΩ ESR. Packaged in a reliable plastic-mold SMD case (7 mm × 1.5 mm × 1.4 mm), this halogen-free, RoHS-compliant crystal offers excellent shock and heat resistance and operates from –40 °C to +85 °C. Sold in a 5-piece reel, it is ideal for real-time clock applications in cellular phones, PDAs, digital video cameras, radio communication equipment, and portable electronics.

Features

• Ultra-thin profile with max height of 1.4 mm
• Compact SMD/SMT package for high-density mounting
• Plastic-mold package with tubular quartz crystal for reliability
• Excellent shock and heat resistance
• Halogen-free and EU RoHS compliant
• Stable 32.768 kHz frequency with 12.5 pF load capacitance
• ±20 ppm tolerance for precise timing
• Operates reliably from –40 °C to +85 °C

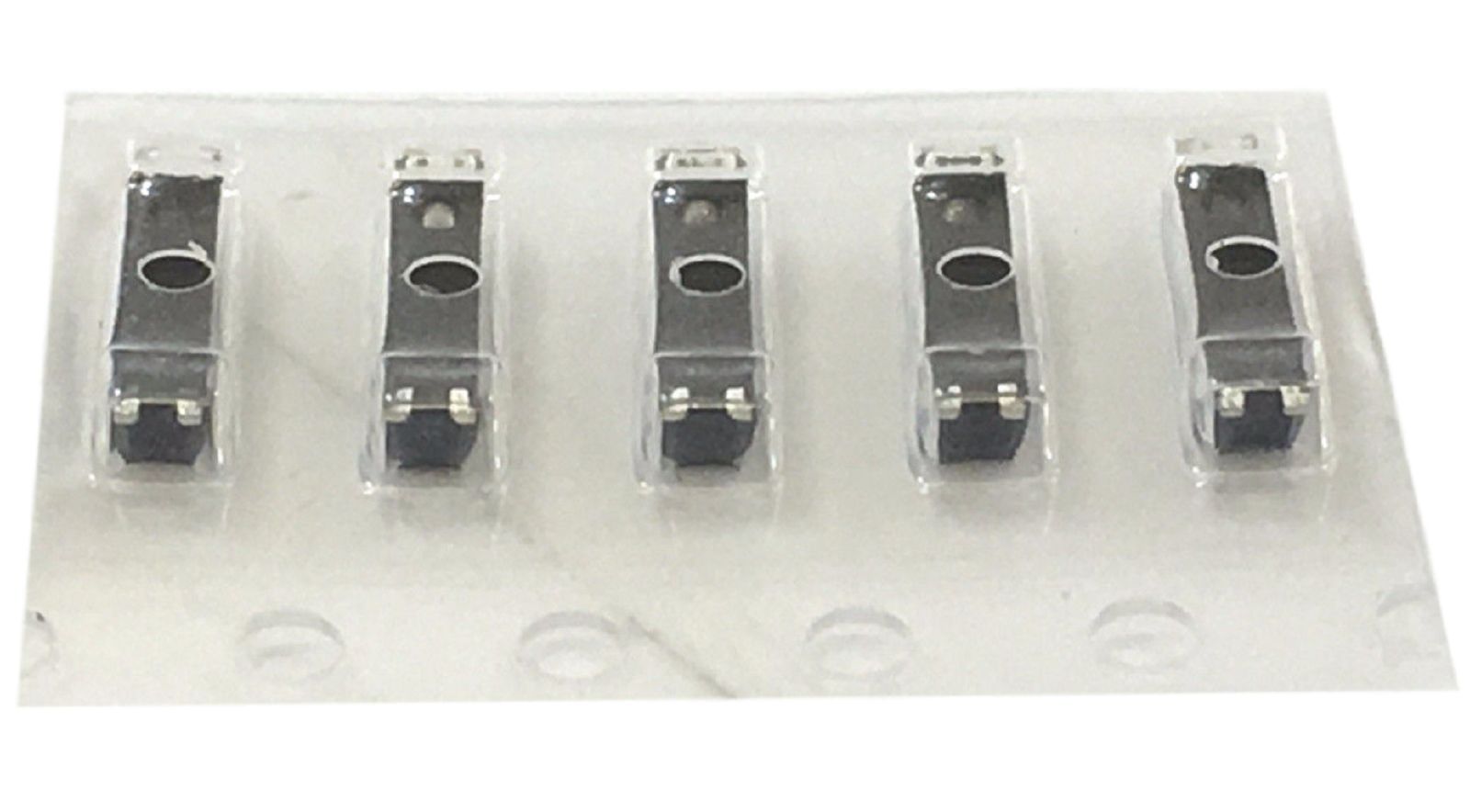

• Supplied in 5-piece reel packaging
