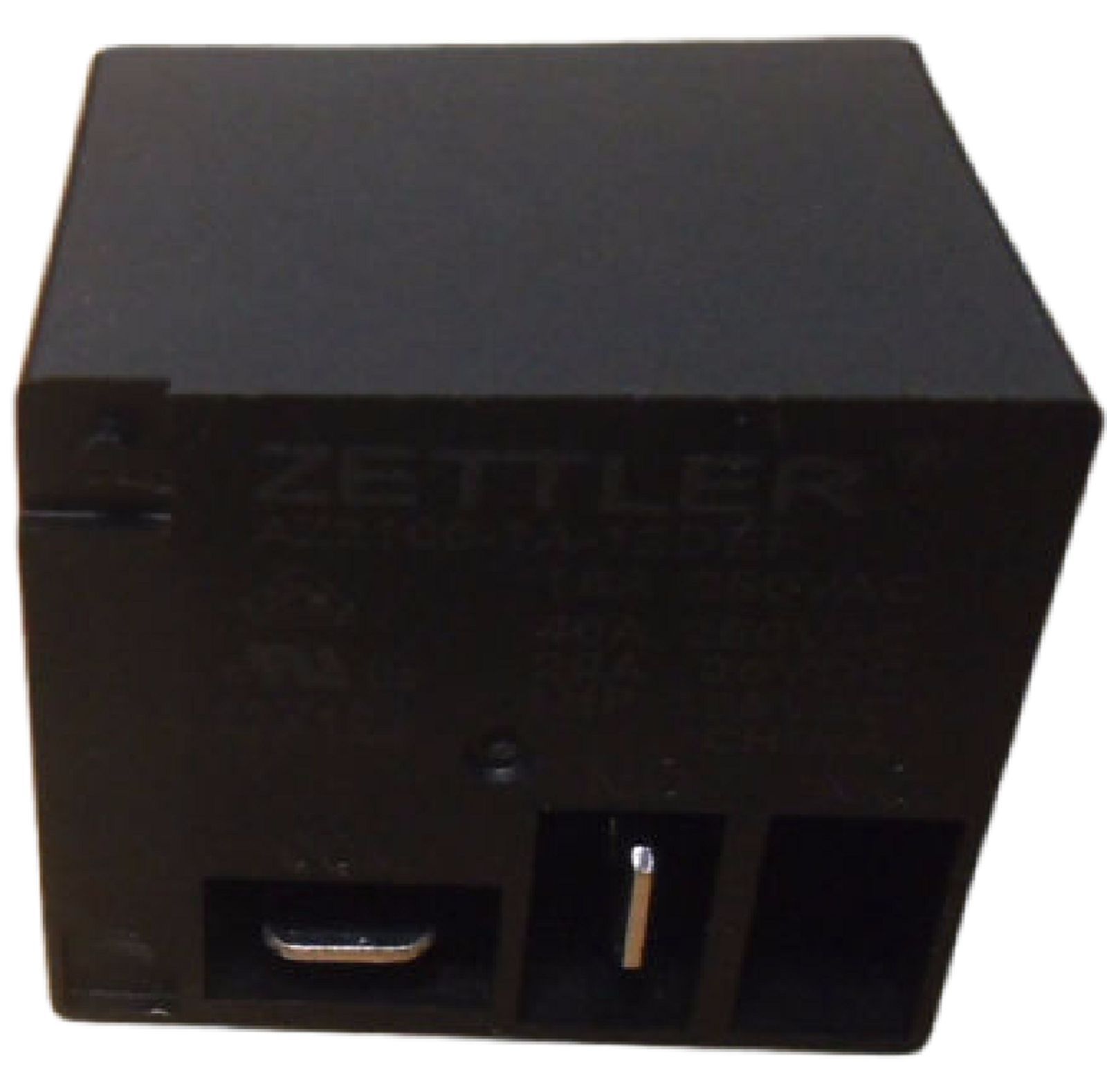

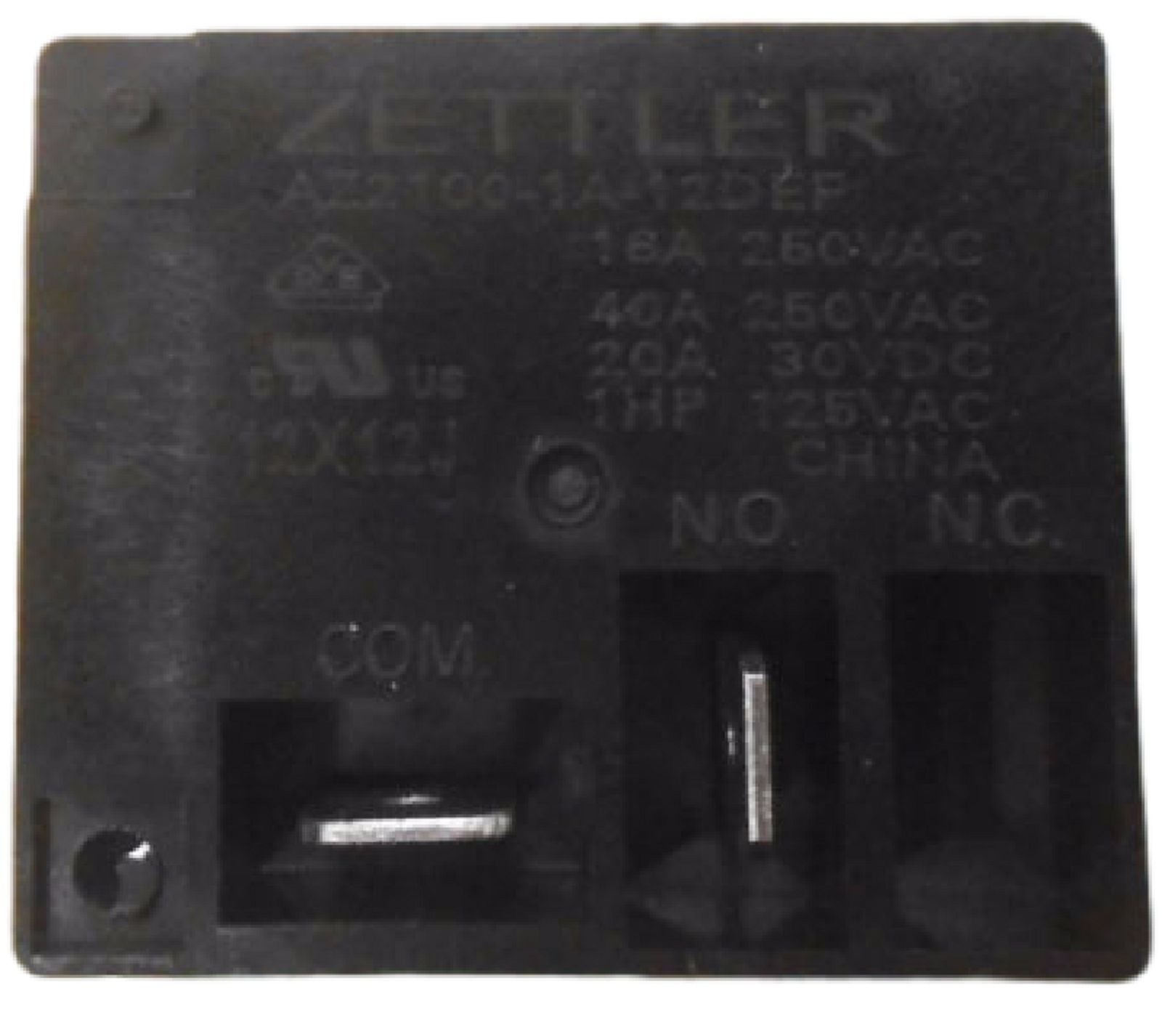

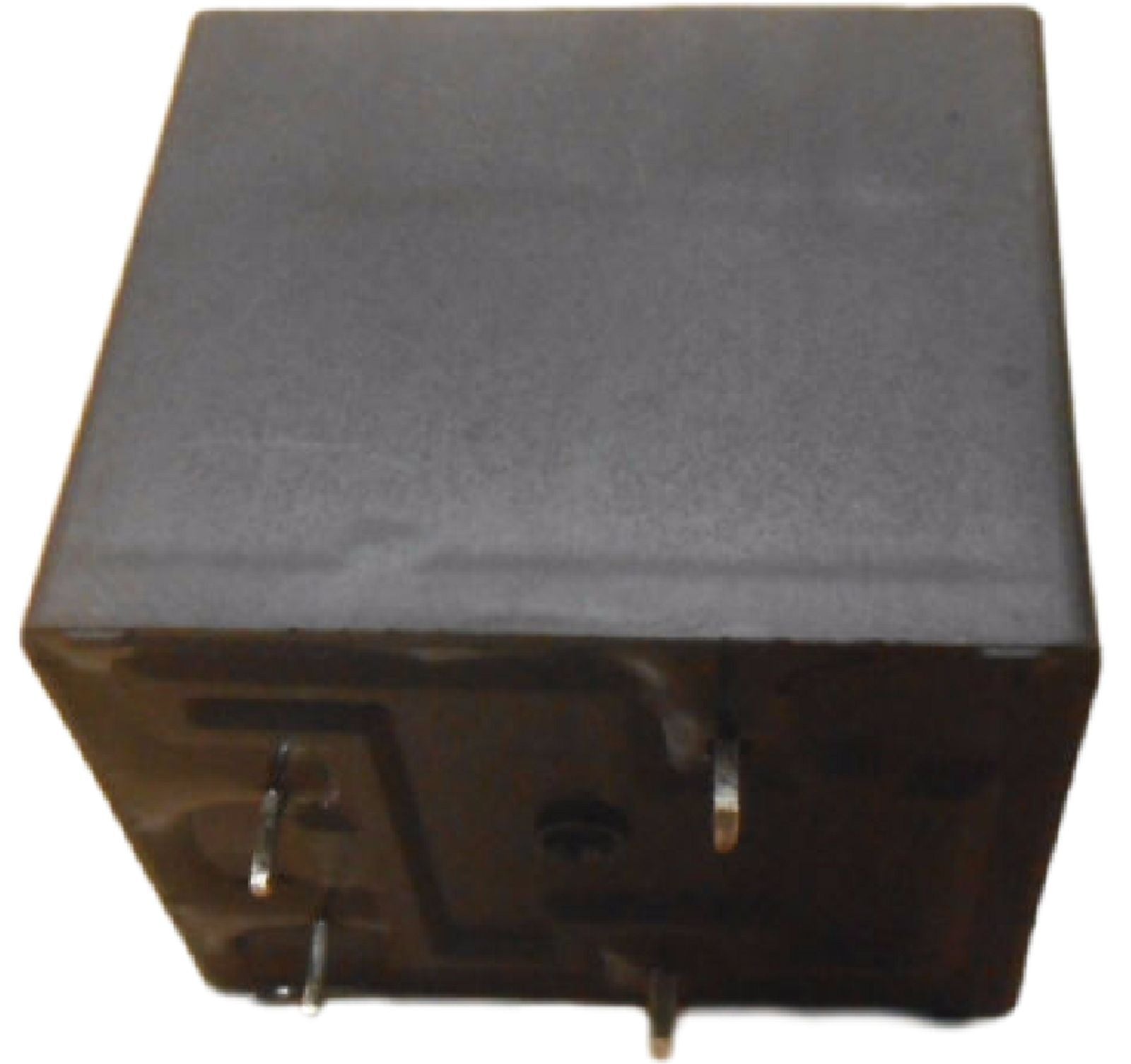

Zettler AZ2100-1A-12DEF - Electromechanical Relay 12VDC 40A 155Ohm Through Hole

  • $18.39
Free Shipping


American Zettler brand Electromechanical Power Relay

Features & Specifications:
  • Manufacturer American Zettler
  • Part No: AZ2100-1A-12DEF
  • RoHS: Unknown
  • Type: Power Relay
  • DC Coil Voltage: 12 V
  • Maximum AC Voltage Rating: 300 V
  • Family: AZ2100
  • Relay Construction: Non-Latching
  • Maximum DC Voltage Rating: 30 V
  • AC Coil Voltage: N/A
  • Coil Current: 77.42 mA
  • Coil Resistance: 155 Ohm
  • Contact Arrangement: SPST-NO
  • Maximum Current Rating: 40 A
  • Pin_Count: 4
  • Maximum Pick-Up Voltage: 9 VDC
  • Minimum Dropout Voltage: >1.2 VDC
  • Mounting: Through Hole
  • Maximum Power Rating: 900W,10kVA
  • Operating Temperature: -55 to 125 °C
  • Dimension: 32.23 x 27.4 x 27.92 mm
