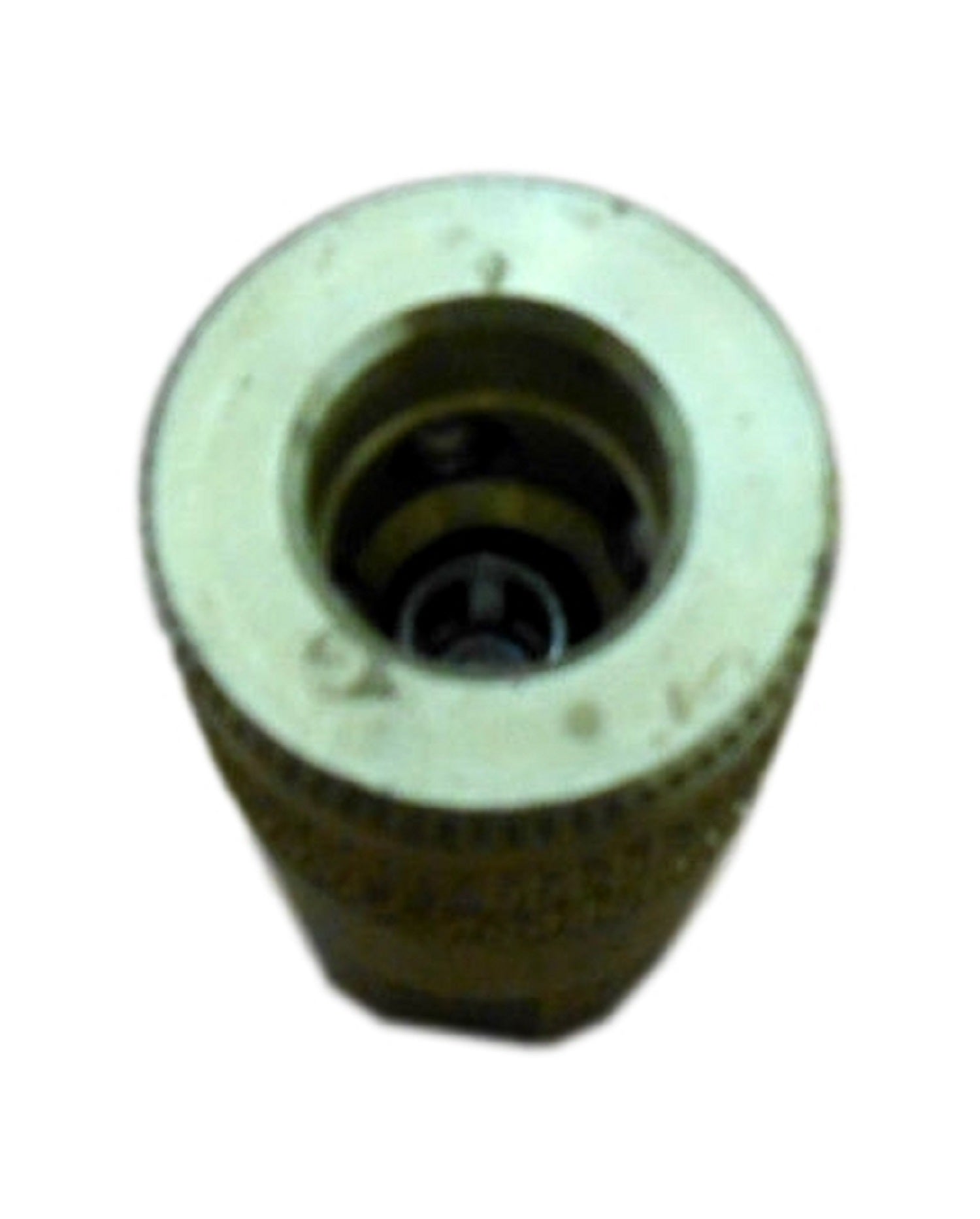

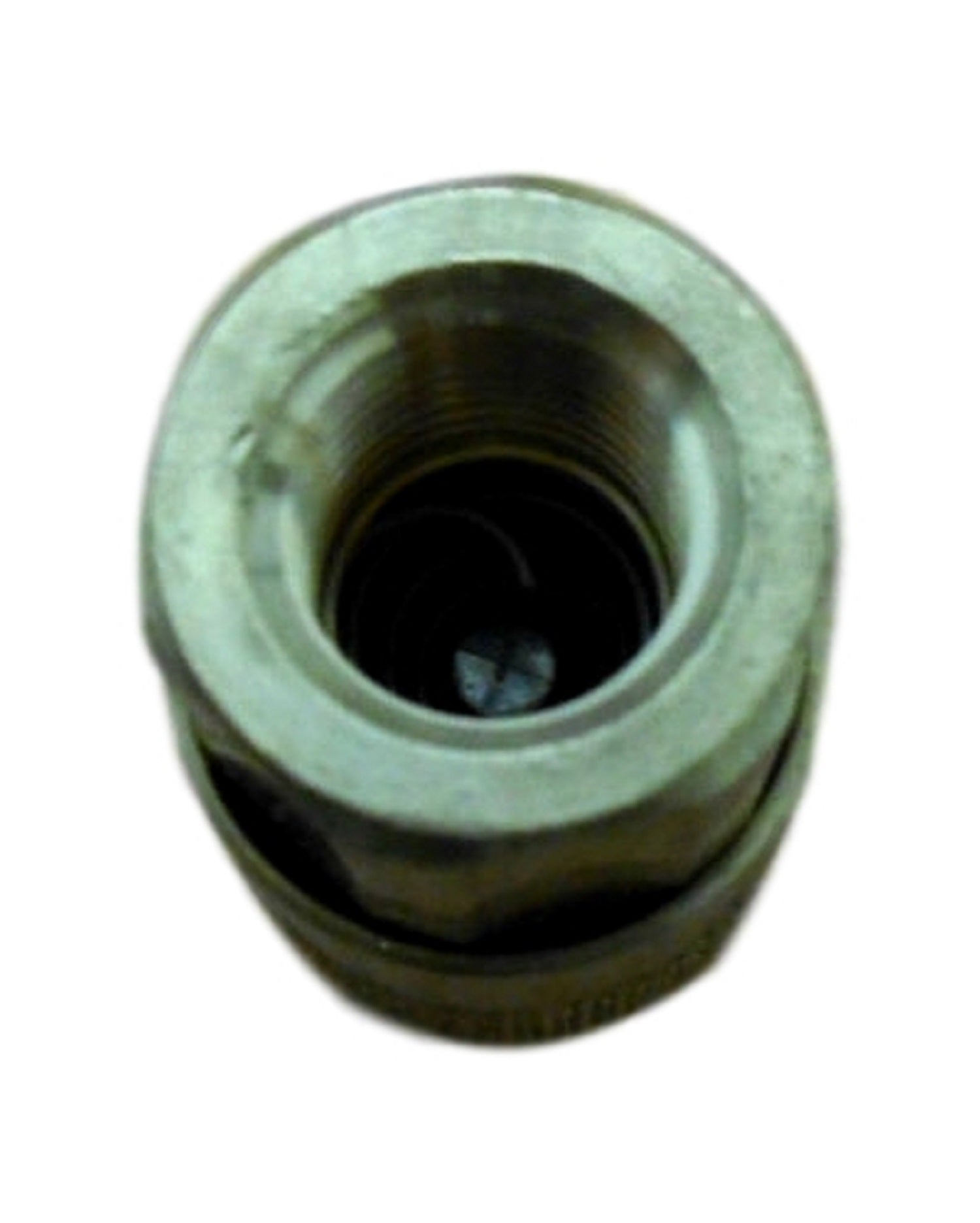

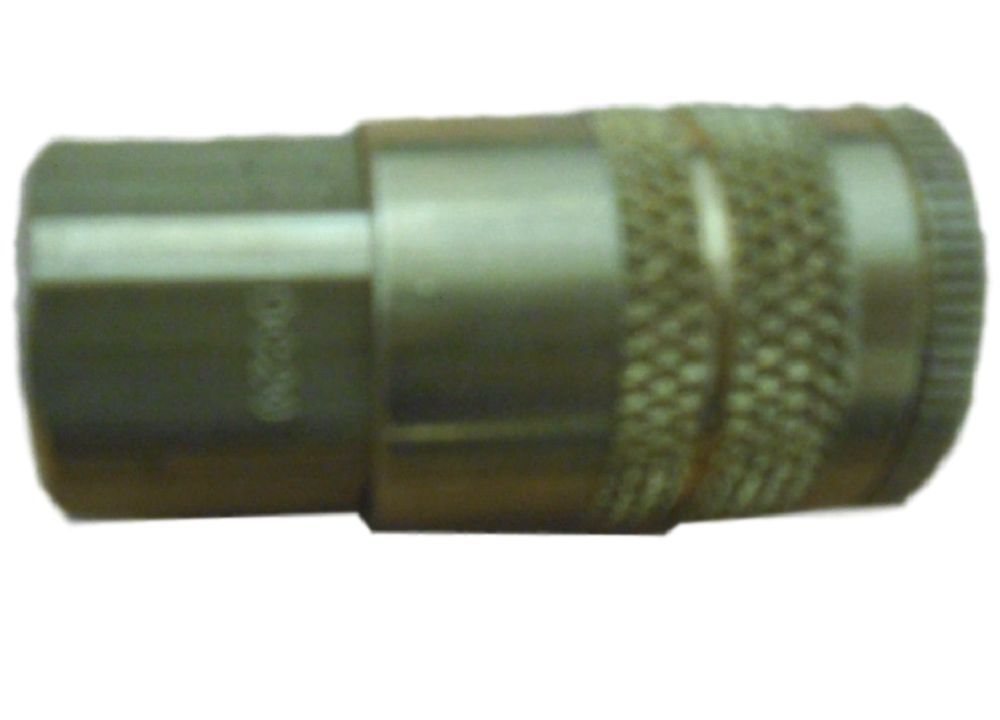

Dixon DC20 Brass Air Chief Industrial Interchange Quick-Connect Air Hose Socket
Dixon brand Brass Air Chief Industrial Interchange Quick-Connect Air Hose Socket. 1/4 Coupler x 1/4 NPT Female Thread 37 CFM Flow Rating
Features:- Air Chief industrial interchange quick-connect couplers
- Rated to 300 psi
- Temperature range: -40 degrees F to 250 degrees F
- For air service only
- Interchanges with MIL specification MIL-C-4109F/A-A-59439
- Brand Name: Dixon Valve & Coupling
- Part Number: DC20
- Material Type: Brass
- Size Name: 1/4
- Maximum Pressure: 300 PSI
- LowerTemperature Range: -40 Degrees Fahrenheit
- Upper Temperature Range: 250 Degrees Fahrenheit
- Connector Type: Coupler x NPT Female
- Item Shape: Socket
- Maximum Flow Rate: 37 Cubic Feet Per Minute
