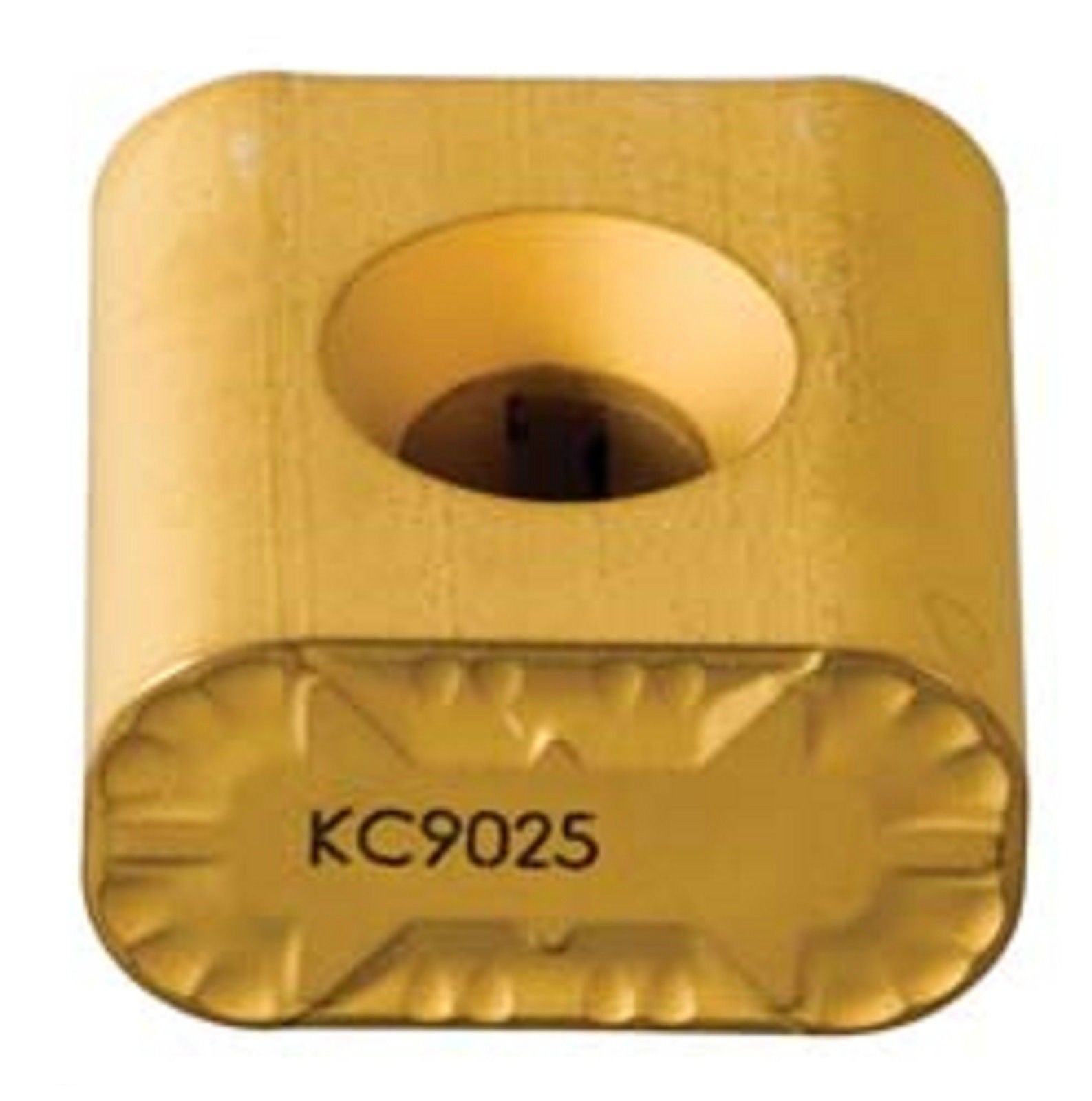

Kennametal LNUX191940-RRP Railroard Reprofiling Carbide LNUX Insert
single Kennametal brand Railroard Reprofiling Carbide LNUX Insert.
FEATURES & SPECS:
| Material | Carbide |
| Insert Style | LNUX |
| Insert Size | 191940 |
| Manufacturer's Grade | KC9125 |
| Chipbreaker | RP |
| Shape | Rectangle |
| Width (Decimal Inch) | 0.7480 |
| Thickness (mm) | 10.00 |
| Corner Radius (Inch) | 5/32 |
| Corner Radius (mm) | 3.97 |
| Corner Radius (Decimal Inch) | 0.1563 |
| Relief Angle ( ) | 0 |
| Thickness (Decimal Inch) | 0.3937 |
| Width (mm) | 19.00 |
| Hole Diameter (mm) | 6.35 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Material Grade | C2/C3/C6/C7 |
| Coating | TiCN/Al2O3/TiCN/TiN |
| Coating Process | CVD |
| Included Angle ( ) | 90 |
| Insert Hand | Right Hand |
| Length (mm) | 19.00 |
| Length (Decimal Inch) | 0.7480 |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
