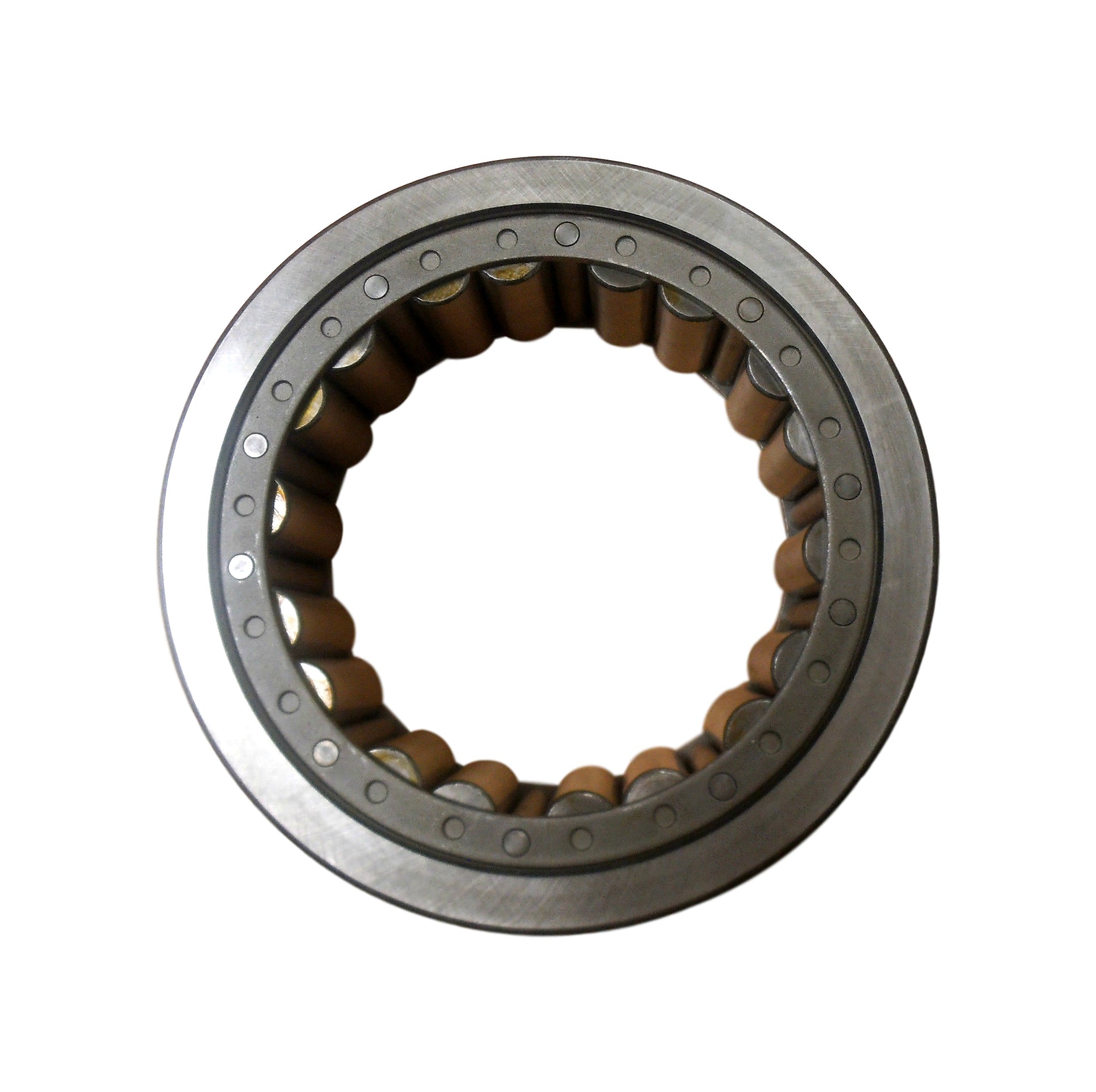

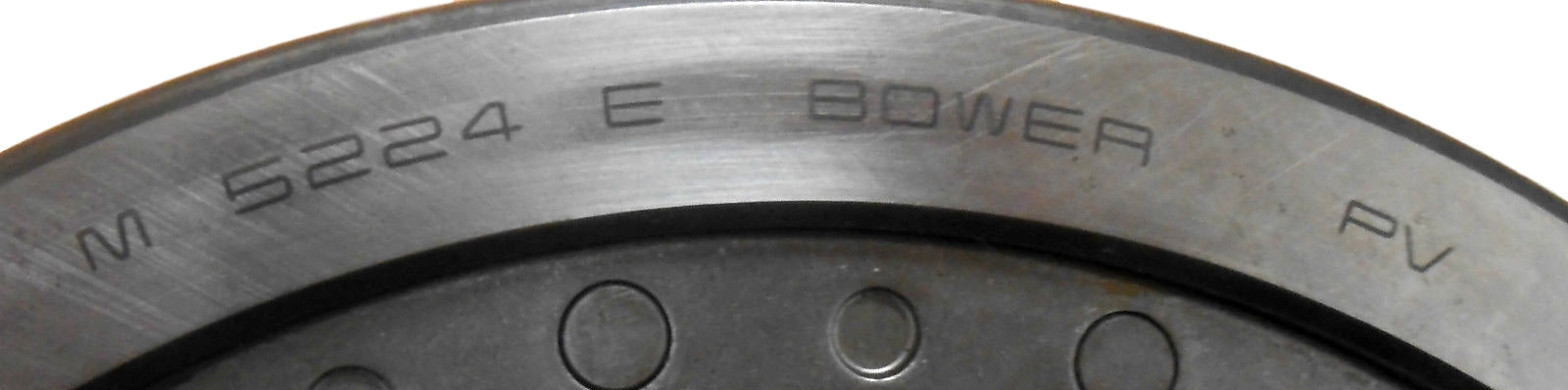

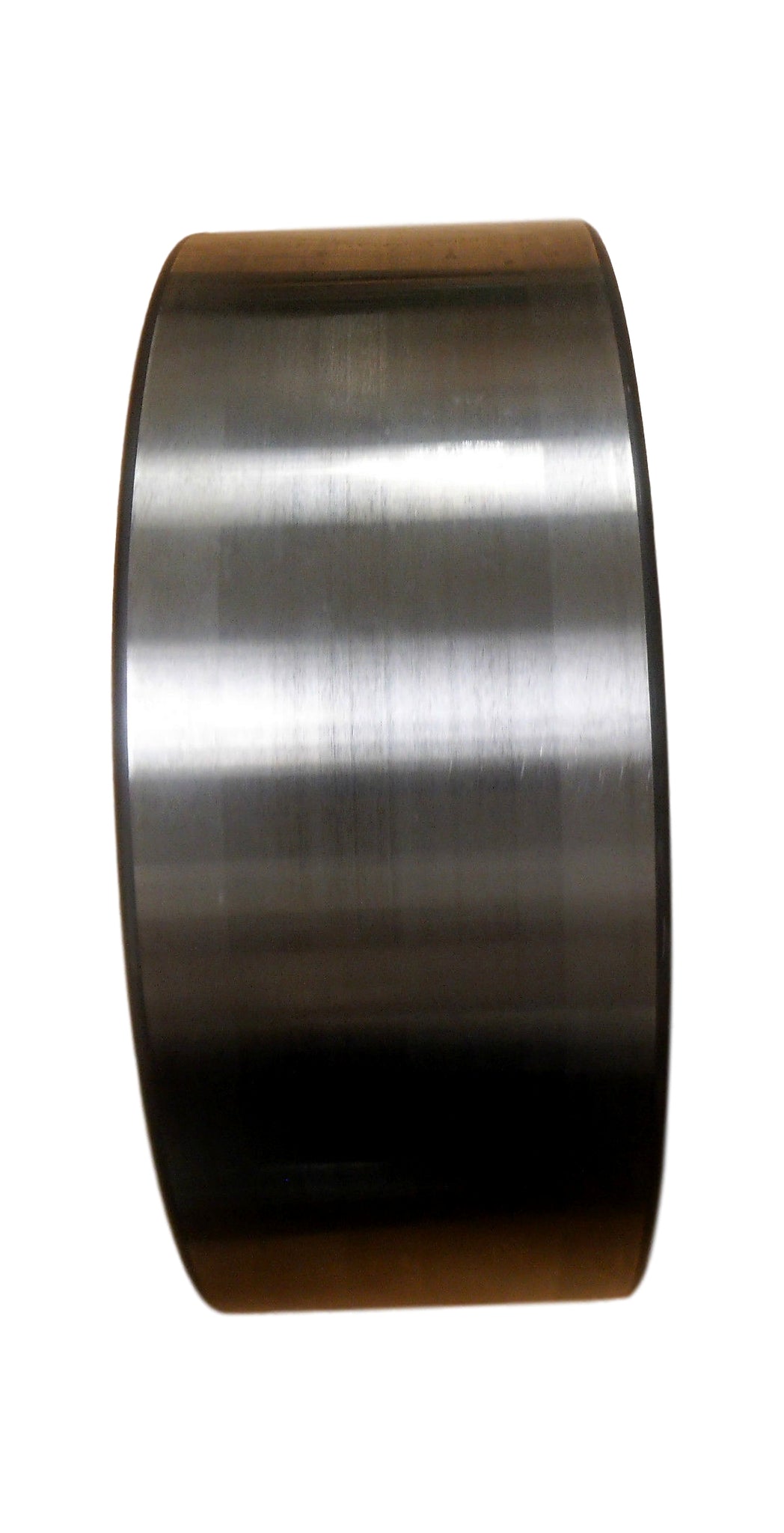

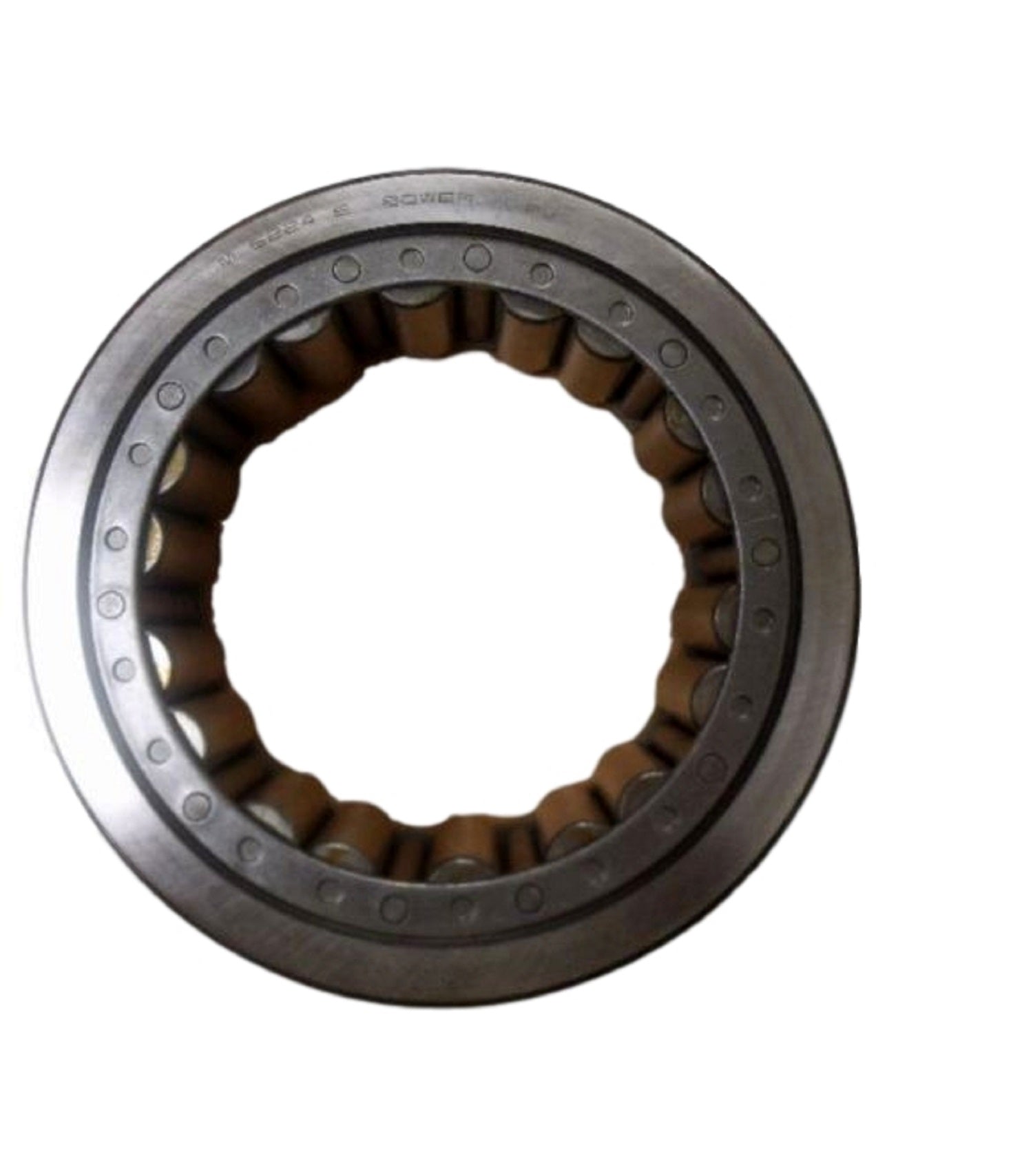

M5224EL PV Bower Cylindrical Roller Bearings M Series E Outer Ring L Type NEW!!!
Single Bower Cylindrical Roller Bearings. Part number: M5224EL.
Please independently verify compatibility.
| Bower Cylindrical Roller Bearings | ||
| NTN Part Number | M5224EL | |
| Weight | 20lbs 4.5oz (lbs/oz) / 9.20kg (kg) | |
| Features/Options | |||||
| Dimension | Imperial | Metric | Option | Code | Description |
| Bore d O.D.D. Width B or W 1Pc S.C. I.R. Dyn. 1Pc S.C. I.R. Sta. Inner Ring O.D. (A) Outer Ring I.D. (C) I.R. Rib O.D. (F) O.R. Rib O.D. (H) Mx Filt Rd. Sh. (R) Mx Filt Rd. Hs. (r) Mn Shl. D P Rgs (U) Mn Shl. D R Rgs (V) Mx Shl. D P Rgs(X) Mx Shl D R Rgs(Z) |
4.7244 (in) 8.4646 (in) 3.0000 (in) 5.7140 (in) 7.5180 (in) 6.0750 (in) 7.1940 (in) 0.1870 (in) 0.0800 (in) 5.4800 (in) 5.7100 (in) 7.8300 (in) 7.5100 (in) |
120.000 (mm) 215.000 (mm) 76.200 (mm) 145.136 (mm) 190.957 (mm) 154.305 (mm) 182.728 (mm) 4.750 (mm) 2.032 (mm) 139.192 (mm) 145.034 (mm) 198.882 (mm) 190.754 (mm) |
Series Outer Ring Type Cage |
M E L |
Standard Metric Series Two Ribbed Outer Ring Composite Steel Cage |
