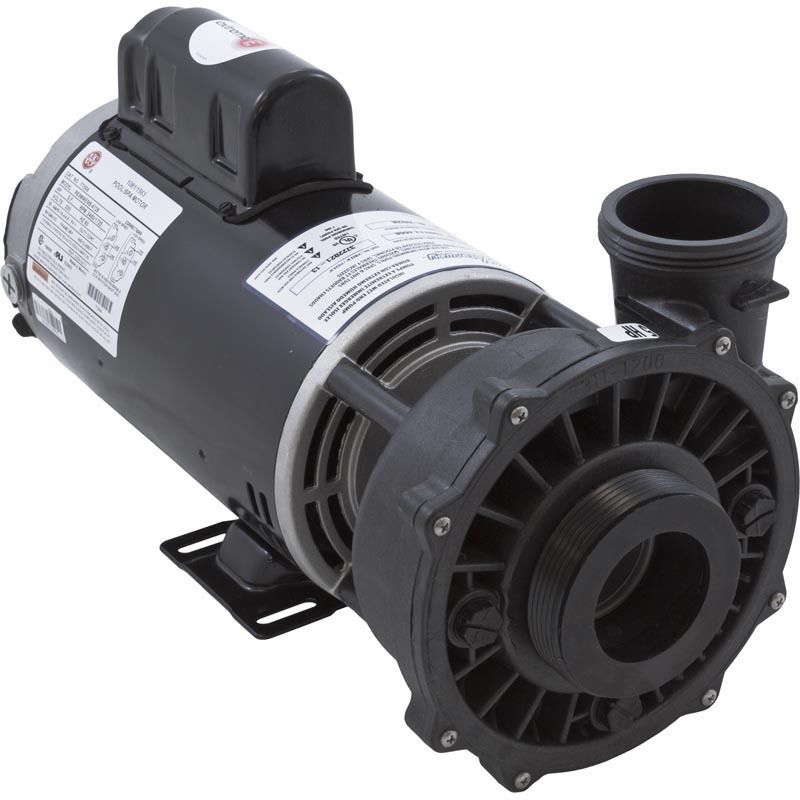

Waterway 3722021-13 2.5" x 2" 5.0HP 230V 2-Speed 56 Frame OEM Pump
Waterway 3722021-13 2.5" x 2" 5.0HP 230V 2-Speed 56 Frame OEM Pump
Features:- Executive wet end designed specifically for 56-frame motors
- 56-frame motor for added strength, cooler operating temperature, and longer motor life
- Large 6-1/2" diameter wet end for higher head pressure
- 2-1/2" intake for improved flow performance and reduced noise
- Wet end can be rotated for easy installation
- Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
- Two speed motors have four sets of insulated windings for increased efficiency
- Dimensions (H x W x L): 9.08" x 8.05" x 14.775"
- Available in 1 to 5Hp and in single or dual speed
- Complete Pump Type: Portable Spa Pump
- Speed: 2 Speed (2-Spd)
- Motor Voltage: 230v
- Drain Plug Location: 3,6,9 o`clock
- Pump to Motor Foot Types: 4a
- Suction Style: Center
- Suction Connection (Physical Dimension): 3-11/16" od
- Suction Connection Type: Male Buttress Thread (mbt)
- Suction Pipe Size: 2-1/2"
- Discharge Style: Side
- Discharge Connection (Physical Dimension): 3-1/16" od
- Discharge Connection Type: Male Buttress Thread (mbt)
- Discharge Pipe Size: 2"
- Horsepower: 5.0hp
- Motor Frame: 56 Frame Thru-Bolt
- Motor Amperage/Wattage: 16.4A/4.8A
- Manufacturer: Waterway
- Pump Model: Executive
- Manufacturer Impeller Number: 310-4180
- Volute Fastening Type: 8 Screws
- Volute/Sealplate Number 315-1240
