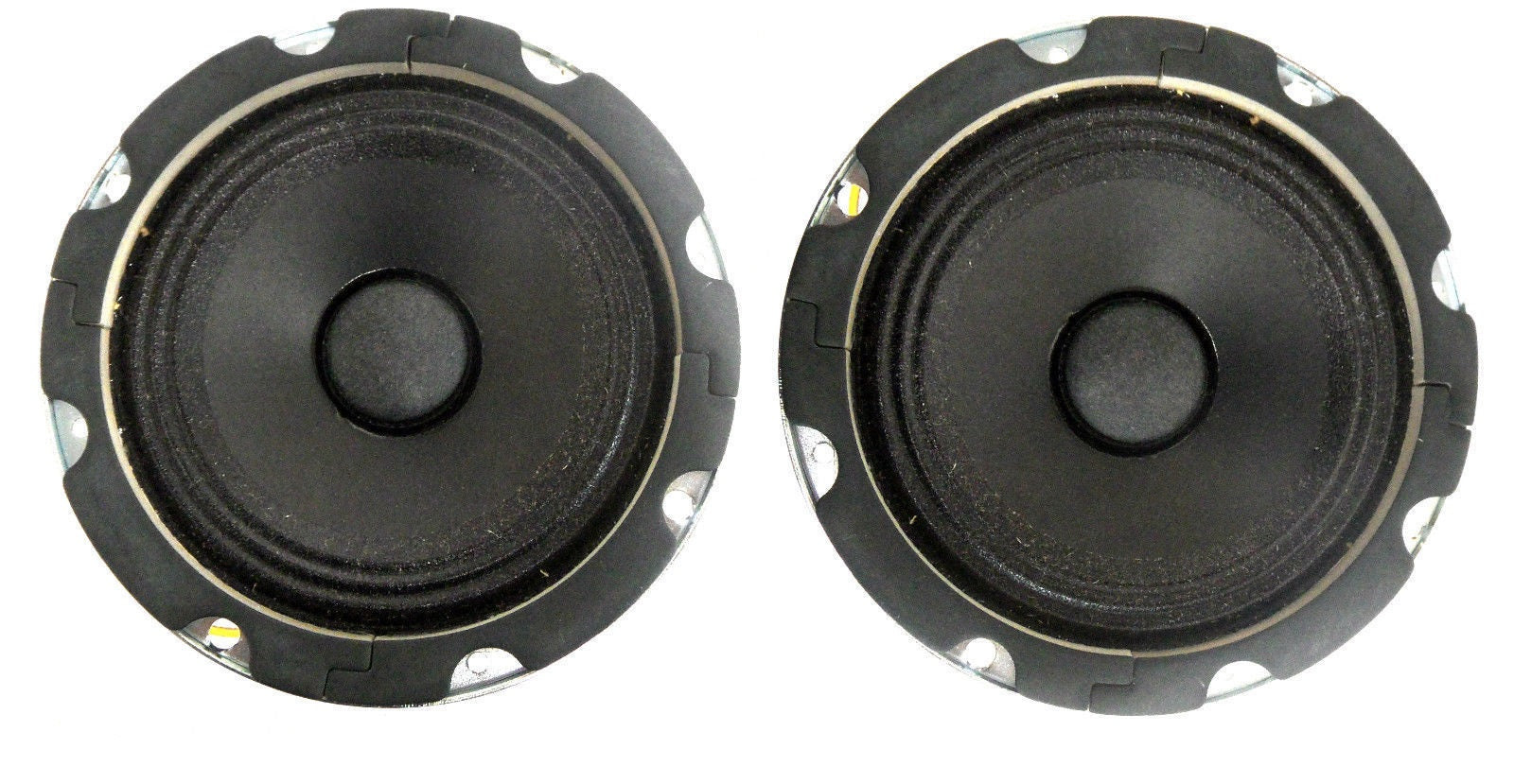

Lot of 2 Electro-Voice 205-8T 10W 4" Ceiling Speakers 70.7V/100V Transformer
Lot of 2 Electro-Voice 205-8T 10W 4" Ceiling Speakers 70.7V/100V Transformer

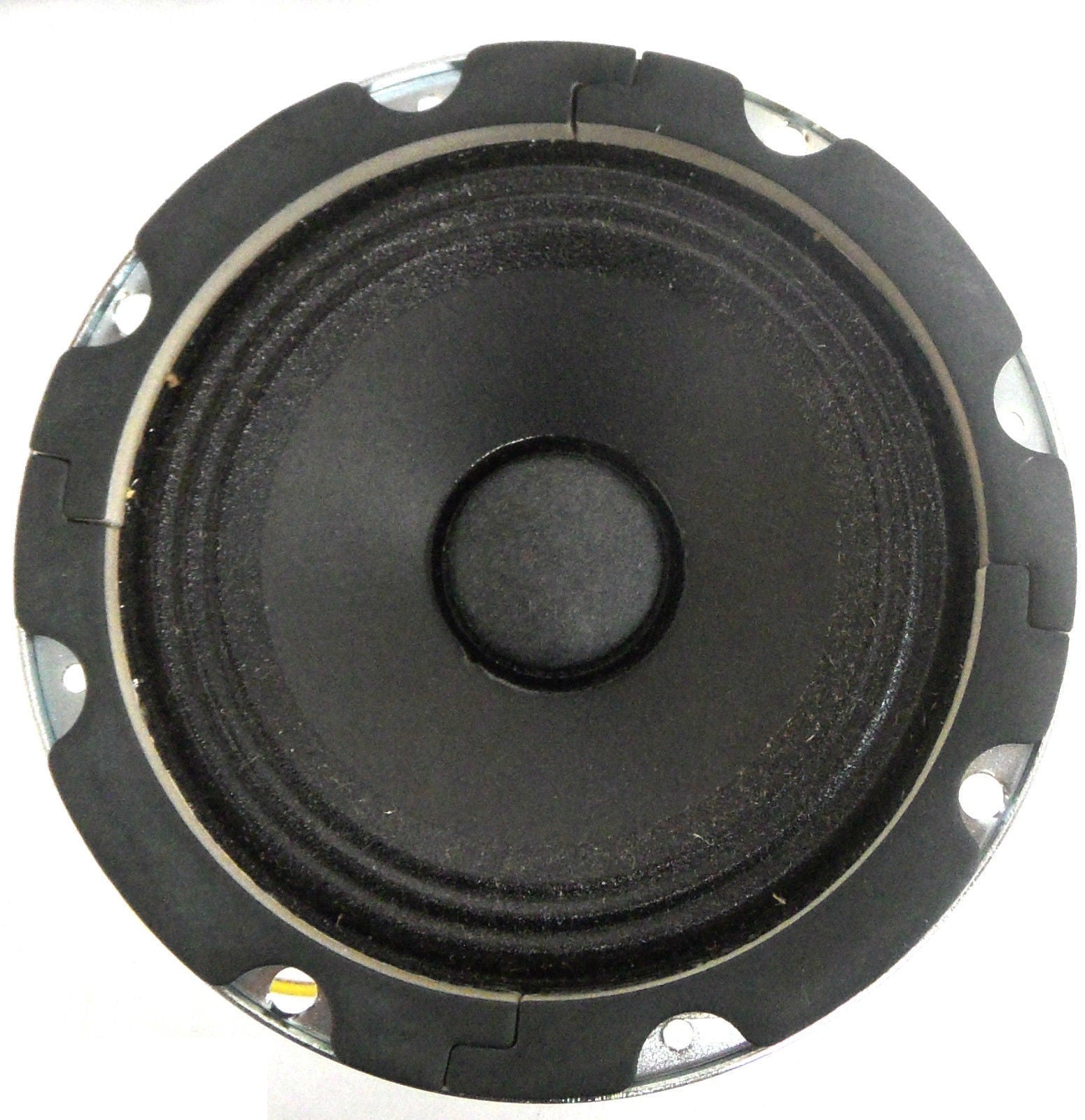

The Electro-Voice 205-8T is a 4-inch dual-cone, 10-watt, full-range installation ceiling loudspeaker with a 70.7V/100V matching line transformer. The acoustically transparent dome encloses a small, centrally mounted free-edge cone, for improved high-frequency speech or music dispersion. The speaker is suitable for applications requiring high-intelligibilty speech, or smooth musical reproduction in commercial installations.

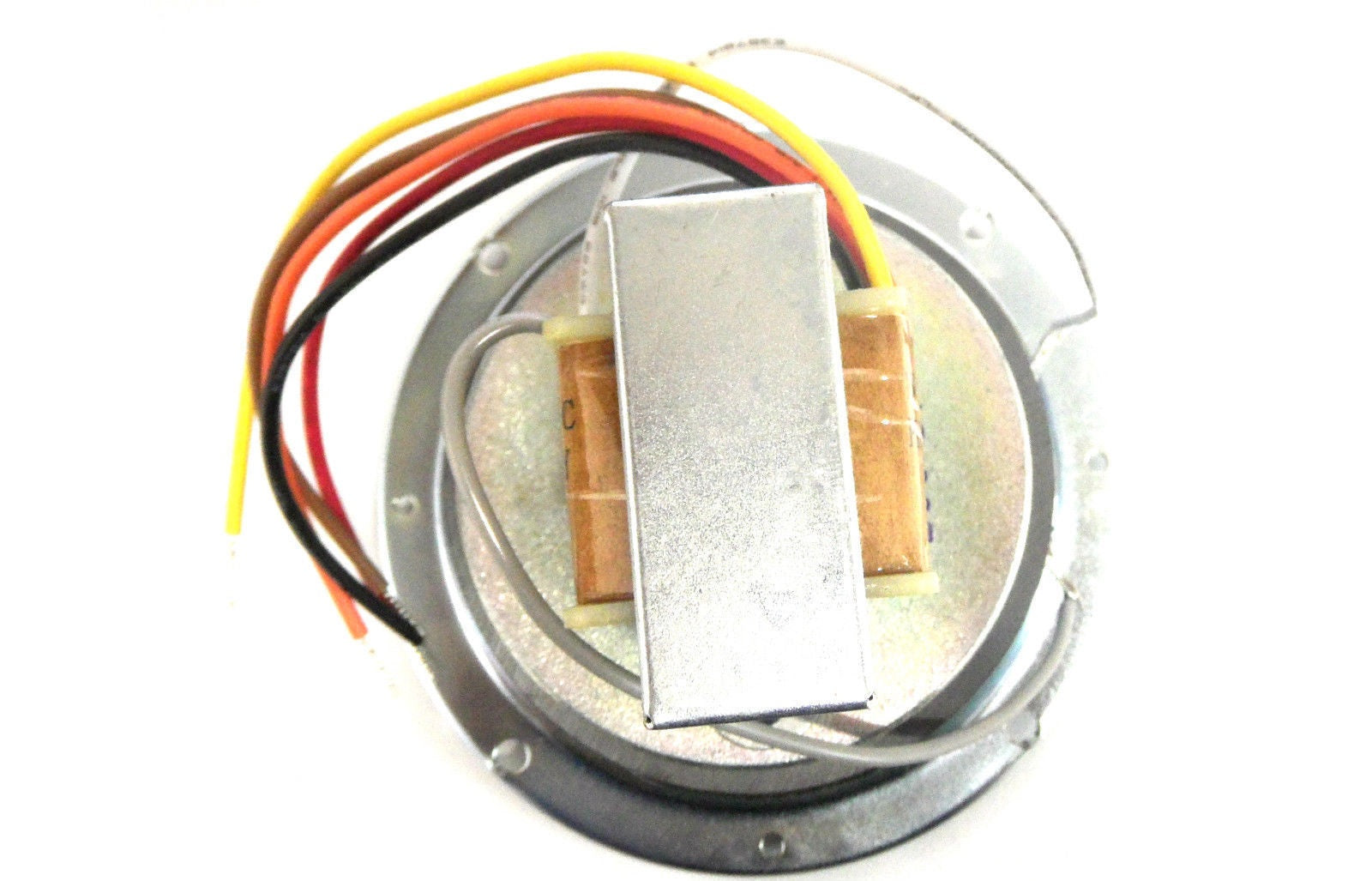

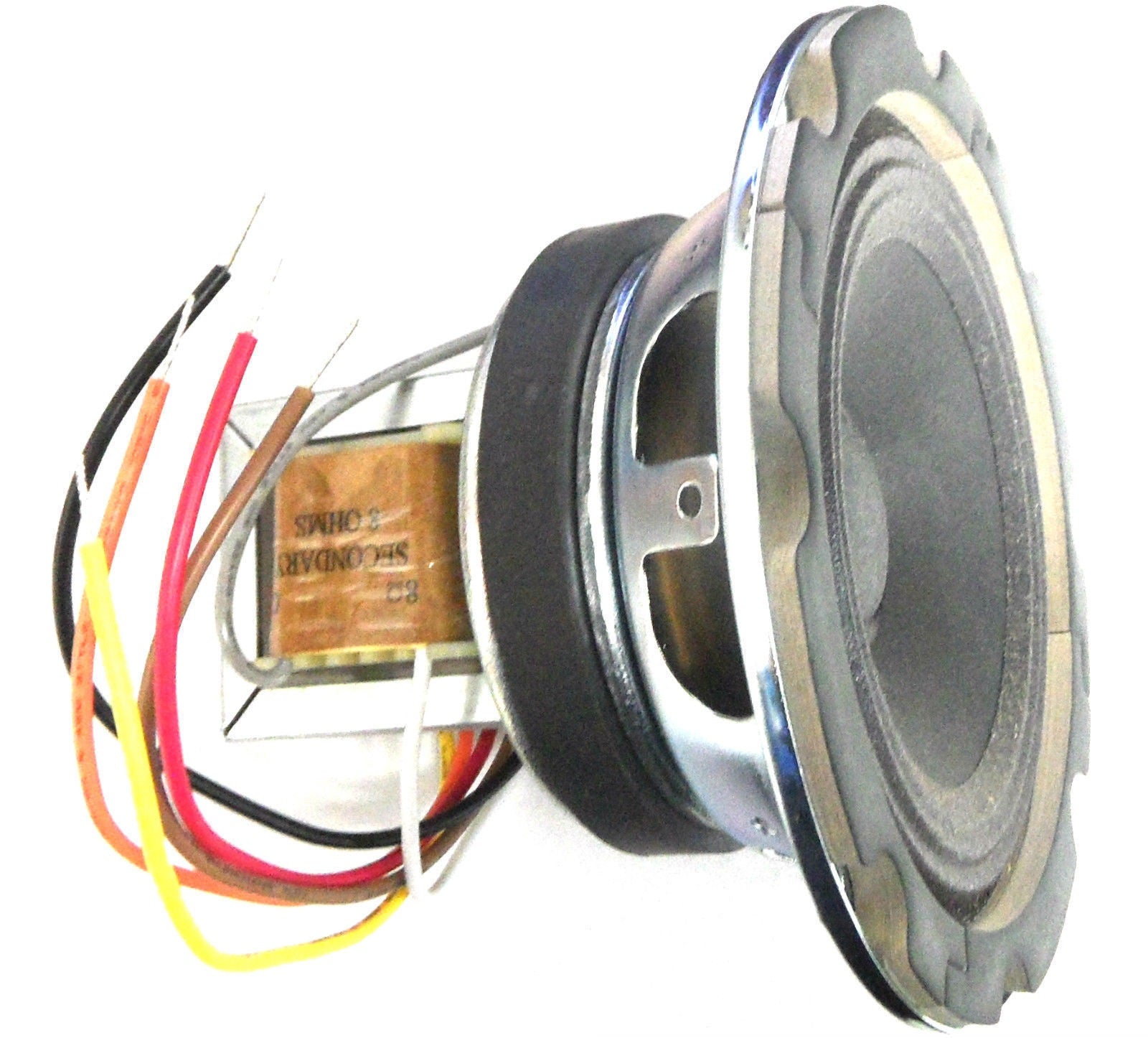

10-watt, 4" full-range ceiling component loudspeaker with 1.0" voice-coil and 70.7V/100V line transformer
Transformer power taps include 1W, 2W, 4W and 8W for 70.V/100V lines
Dust protection via integral dust dome
| Frequency Response | 90 Hz - 18 kHz +/-5dB |
| Maximum Power Handling | 10 Watts |
| Impedance | 8 Ohms |
| SPL | 101dB SPL @ 1m |
| Beamwidth | Not Applicable |
| Horizontal Beamwidth | Not Applicable |
| Vertical Beamwidth | Not Applicable |
| Directivity | Not Applicable |
| Construction | 22-gauge stamped steel frame with black finish |
| Magnet | Weight: 0.72 lb (0.32 kg) Material: Barium Ferrite |
| Voice Coil | 1.0" (25.4mm) |
