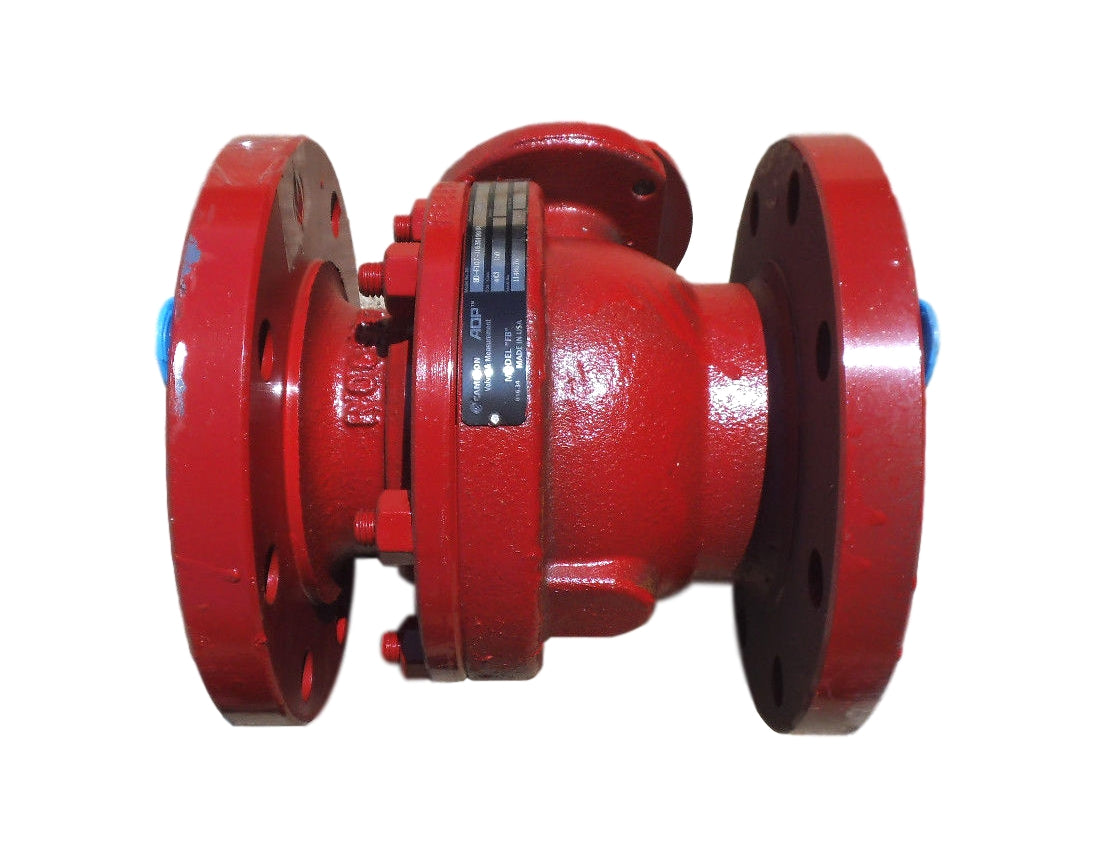

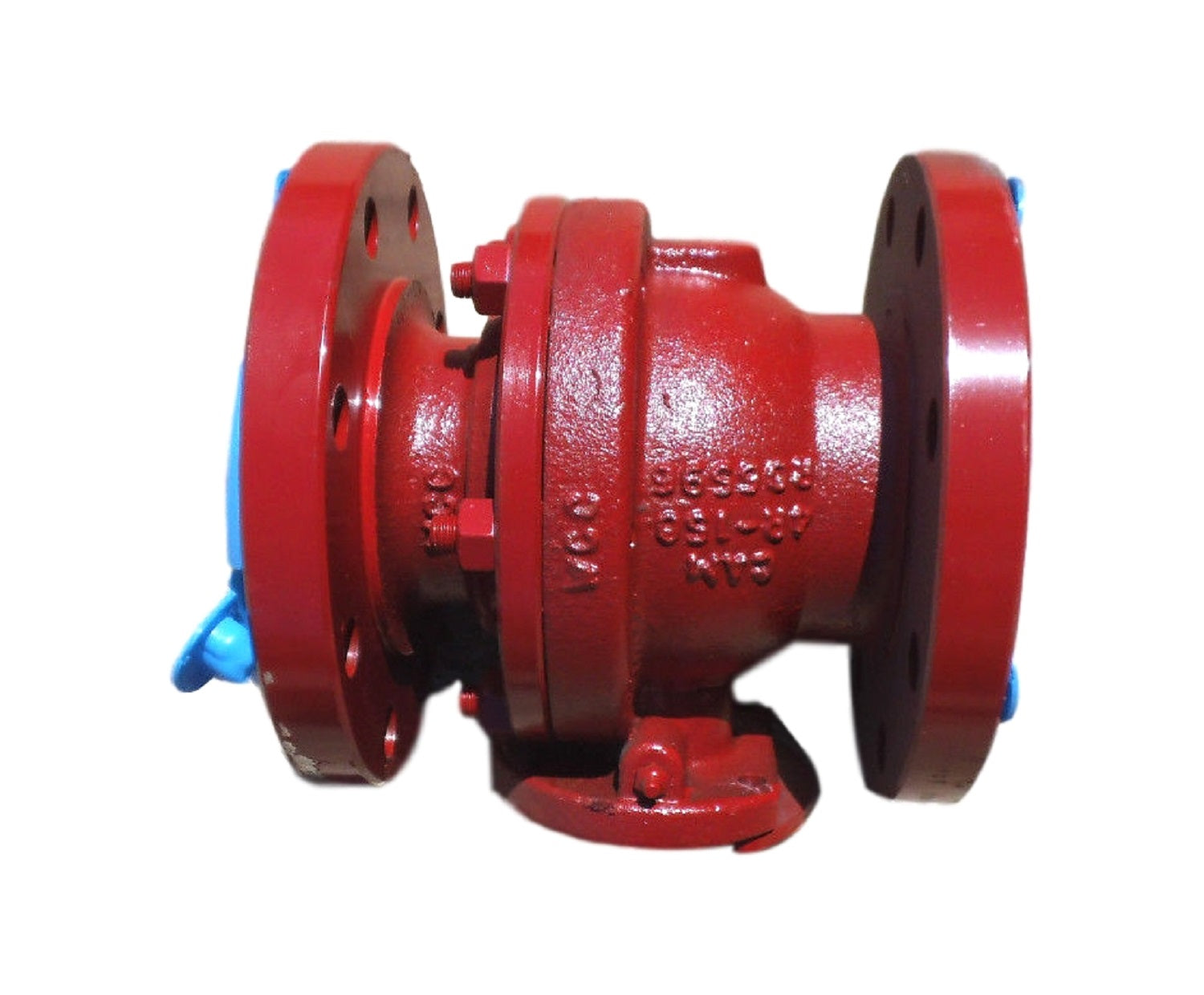

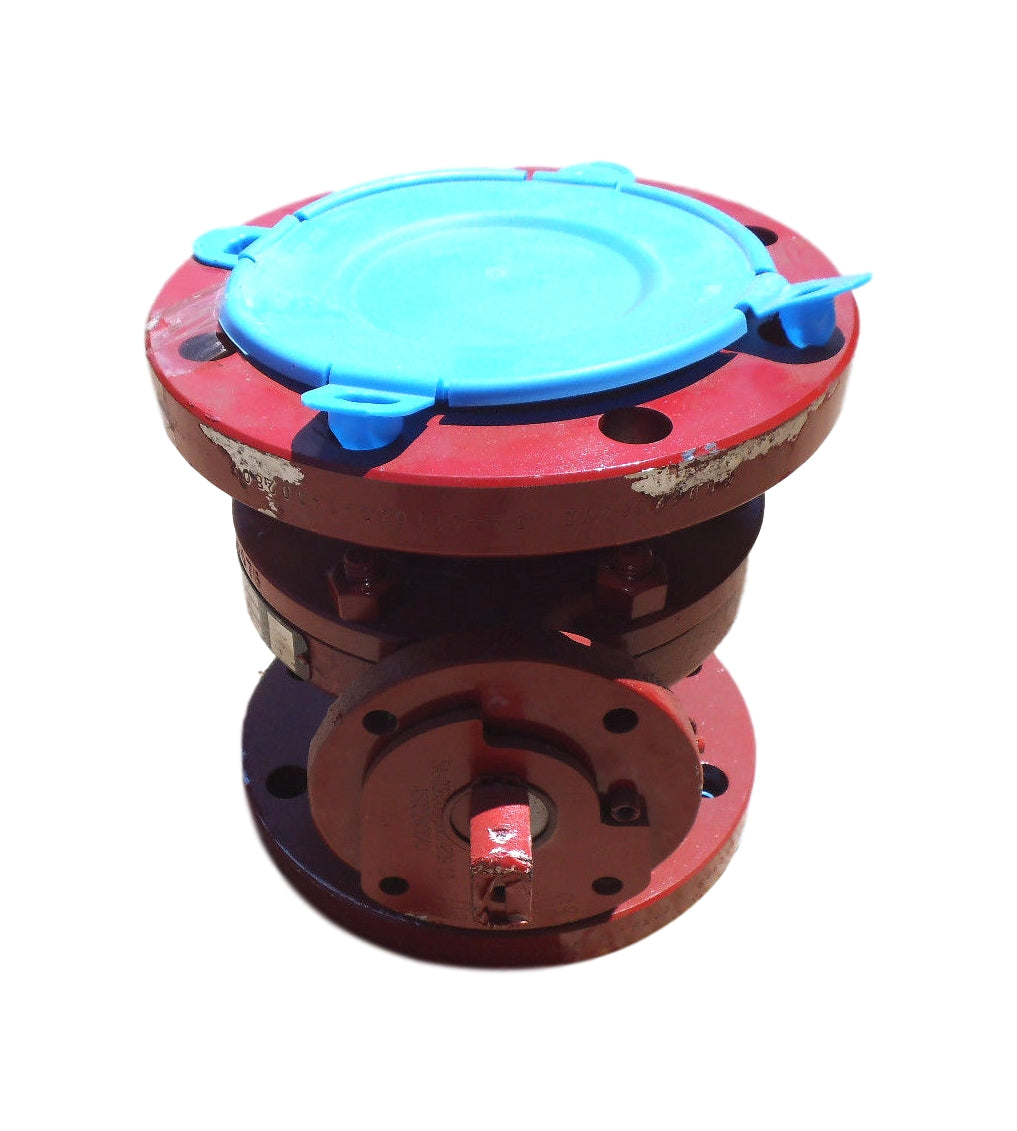

Cameron AOP Series Model FB Floating Ball Valve 4" x 3" 285WP Class 150 Flanged
Cameron AOP Series Model FB Floating Ball Valve 4" x 3" 285WP Class 150 Flanged
Cameron AOP Series Model FB Floating Ball Valve 4" x 3" 285WP Class 150 Flanged
Cameron AOP Series Model FB Floating Ball Valve 4" x 3" 285WP Class 150 Flanged

Cameron AOP Series Model FB Floating Ball Valve 4" x 3" 285WP Class 150 Flanged

Free Shipping

The FB Series is a cast body, side entry, floating ball valve. The two-piece body and bolted construction allow disassembly on the jobsite for easy service and repair. FB Series valves are available in sizes 1” through 10” reduced port ANSI classes 150/300, 1" through 6" reduced port ANSI class 600, 1" through 3" reduced port ANSI 900/1500 classes. Valves are available with a lever handle, gear operator, or bare stem for actuation. Stem extensions and special coatings are available direct from the factory for buried service applications.

Standard Features:
  • Floating ball
  • Back seated and positively retained stem - cannot be removed with
  • the valve in service
  • Stem lube fitting and weather seal
  • Standard locking handle and actuator mounting pad
  • Plated carbon steel trim or stainless steel trim available
  • Standard RTFE seats
  • Fire tested API 607
Item Specifics:
  • 4" x 3"
  • Class 150
  • CWP: 285 @ 100F
  • Service: SOUR
  • Manufacturer code: 2005
  • MOP 285/-20

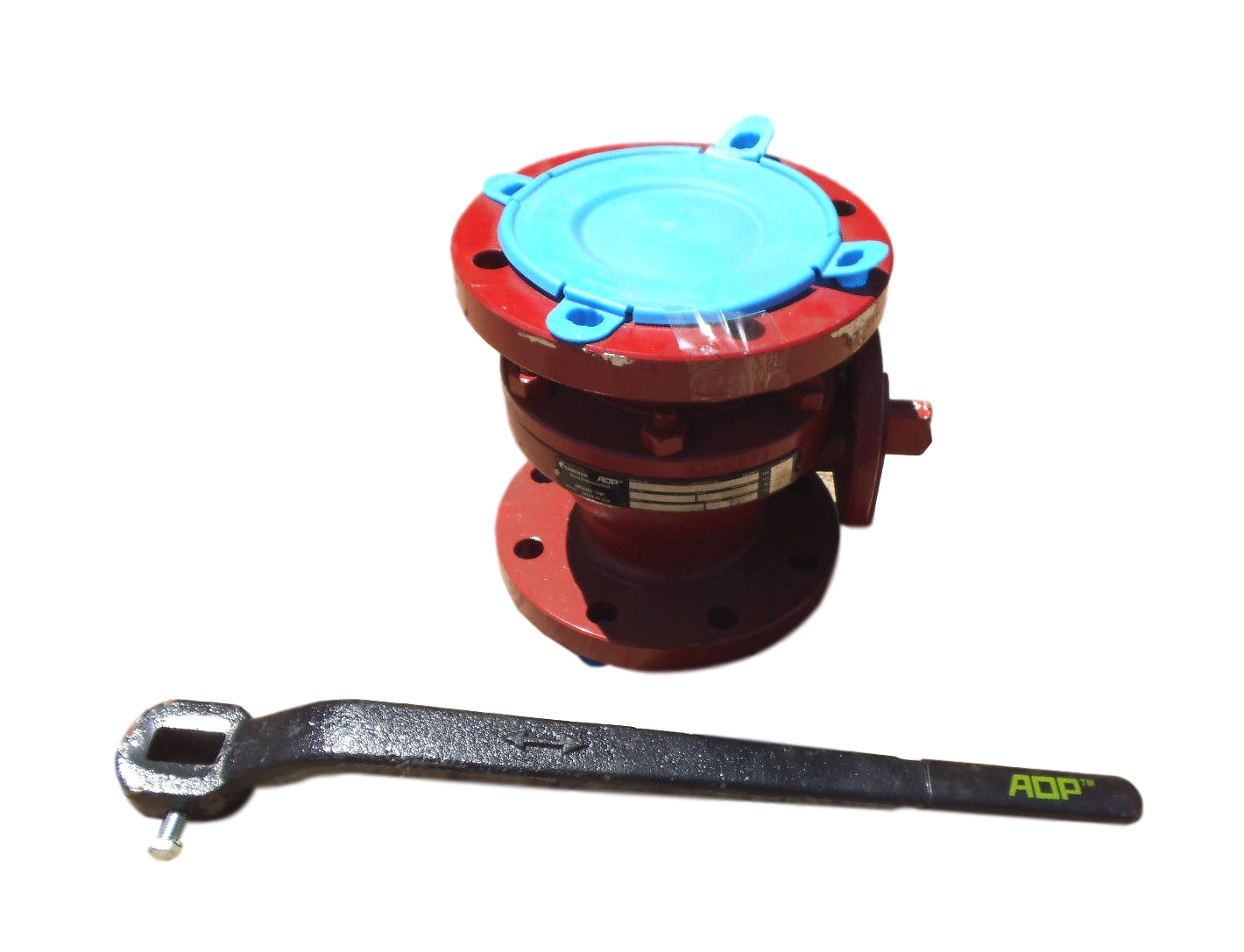

  • Valve handle included
