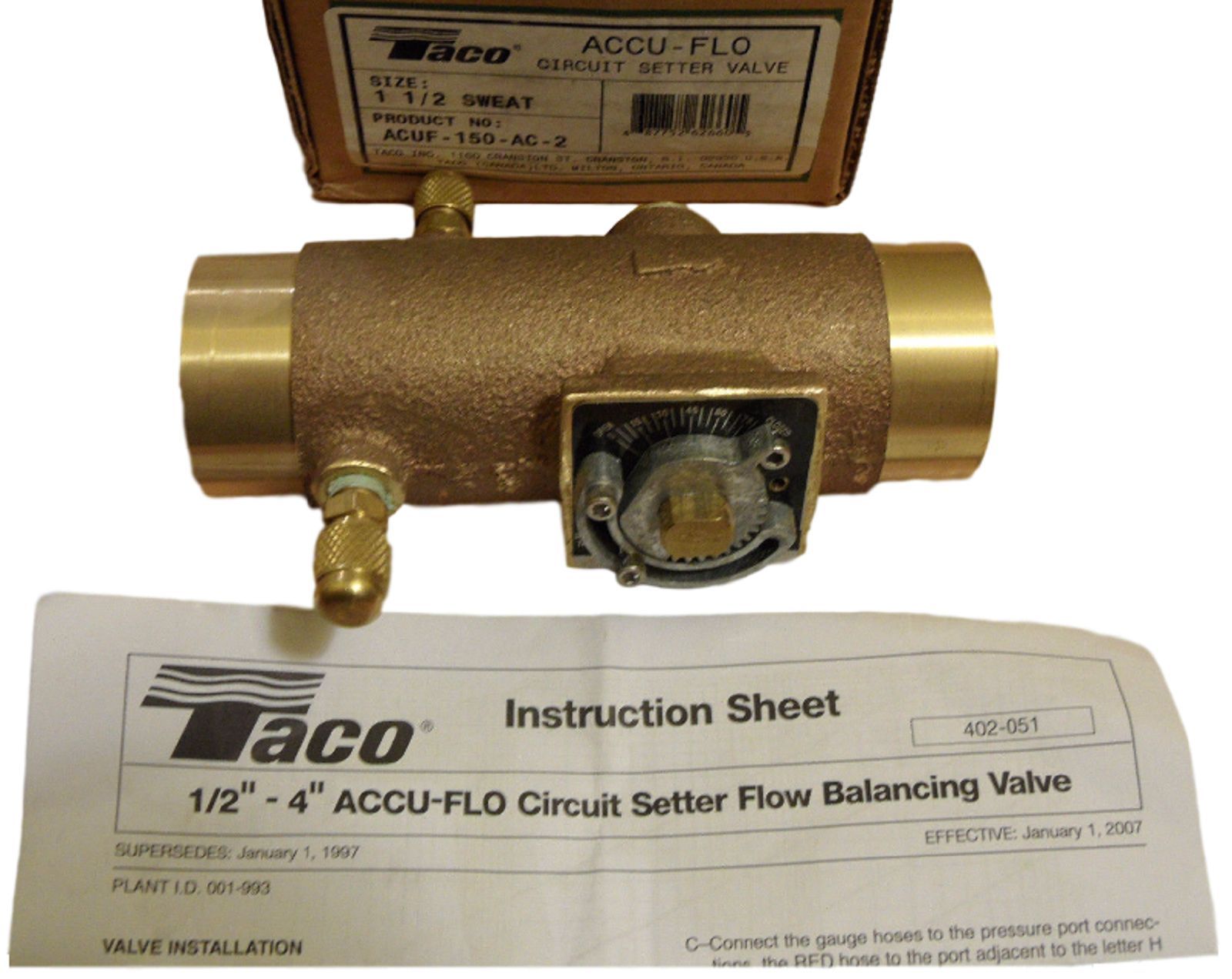

Taco ACUF-150-AC-2 1-1/2" Sweat ACCU-FLO Balancing Valve

  • $226.15
Free Shipping


Accu-Flo Hydronic Balancing Valves For Balancing Flow to Terminal Units on Hydronic Systems ACUF-150-AC-2 1-1/2 Sweat

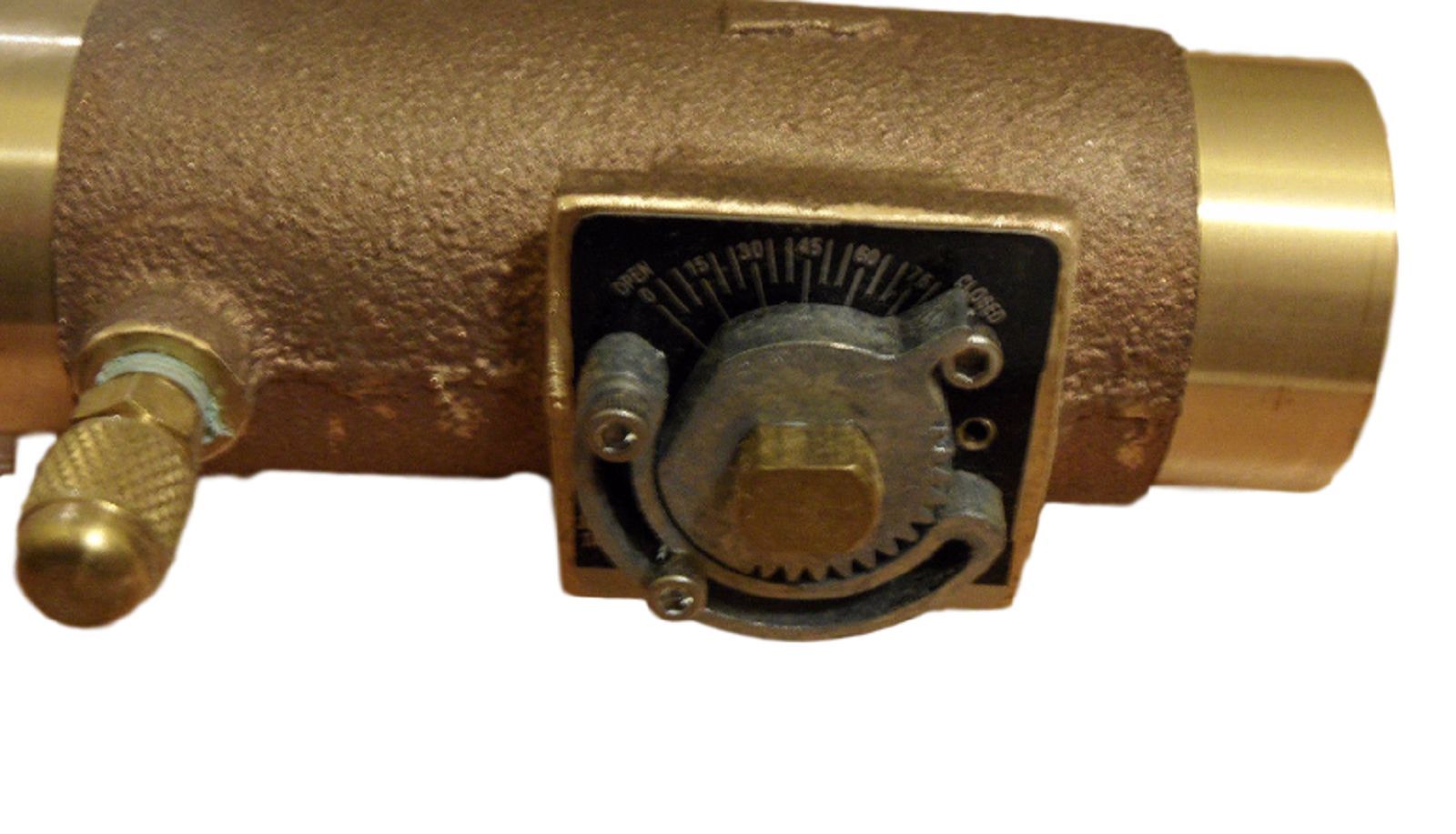

Fixed port venturi balancing provides accuracy 4–5 times greater than the standard valve Flow measurement independent of ball position Compact design Tamper resistant memory stop Positive shutoff for servicing system Built-in drain port Rated to 300 PSI, 250 F

4 Ft./Sec. Res. Max. Flow: 24.0 GPM; 6 Ft./Sec. Com. Max. Flow: 36.0 GPM; Conn. Size: 1-1/2 Sweat; Cv: 28.30; Mfg. : ACUF-150-AC-2; Min. Flow Rate: 6.0 GPM;

Specifications:
  • 6 Ft./Sec. Com. Max. Flow 36.0 GPM
  • Conn. Size: 1-1/2 Sweat
  • Cv: 28.3
  • Min. Flow Rate: 6.0 GPM
  • 4 Ft./Sec. Res. Max. Flow 24.0 GPM
