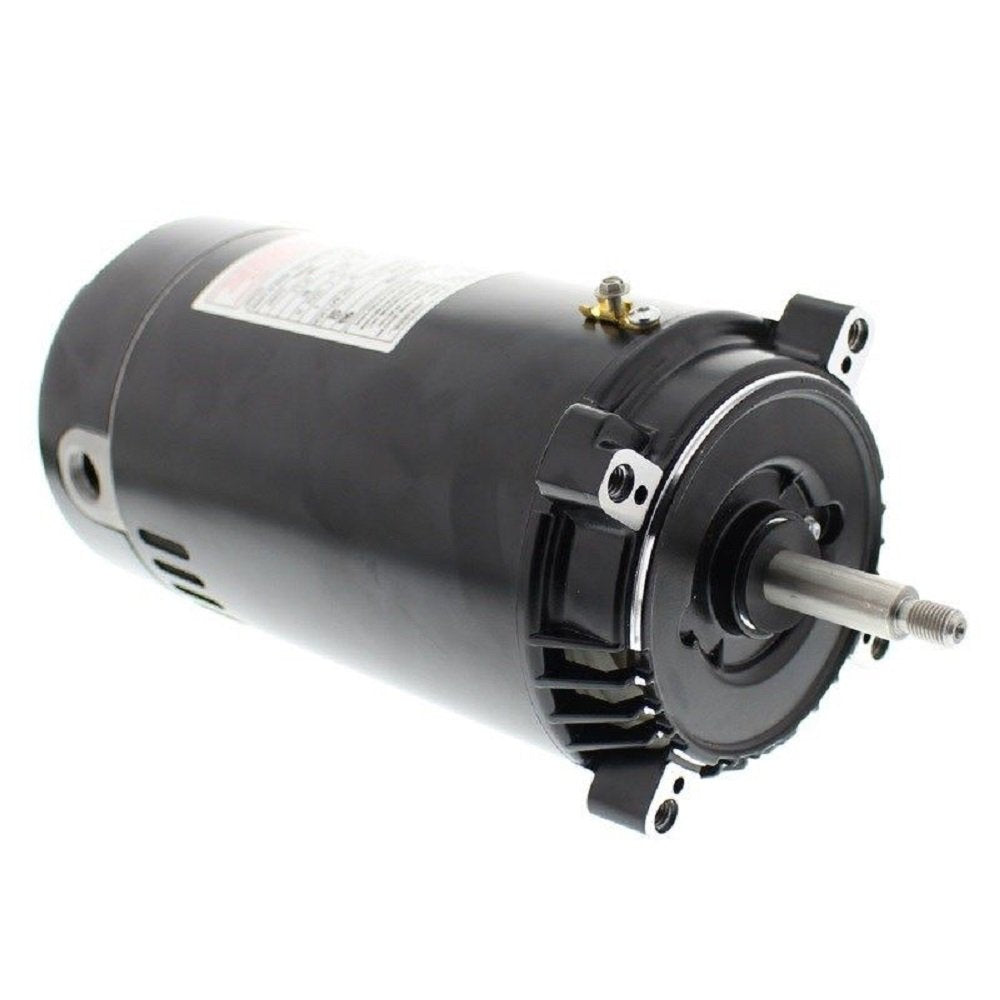

A.O. Smith UST1102 1HP 115/230V NEMA C-Face Pool Filter Motor
Century 1 HP up-rated C-face motor for many Hayward and Jacuzzi pumps. If your old motor is a full-rated ST1102, replace like for like.
- Brand: A.O. Smith
- Part number: UST1102
- Below Cost Everything SKU: AOS-UST1102-HZ16
Fits / Compatible with
- Hayward Super Pump, Super II, Max-Flo and NorthStar pumps
- Jacuzzi Magnum pumps
Also known as / replaces: Century UST1102.
Specifications
- Power: 1 HP up-rated, single speed
- Supply: 115/230 V, 15.0/7.5 A
- Speed: 3450 RPM
- Frame: 56J C-face, threaded stainless shaft
- Service factor: 1.1
Not sure it fits? Check the part number against your equipment's parts diagram, or ask the Below Cost Everything team at support@belowcosteverything.com.
