Timotion TA1-5023-001 TA1 Series Linear Actuator Push 8000N Max 6.0Amp
Timotion TA1-5023-001 TA1 Series Linear Actuator Push 8000N Max 6.0Amp
SKU: TIM-TA1-5023-001-WB-BCE
This sale transaction is for a Timotion TA1-5023-001 TA1 Series Linear Actuator Push 8000N Max 6.0Amp. included exactly what is pictured.
The TA1 series linear actuator is TiMOTION’s flagship model suited for healthcare applications. Industry certifications for the TA1 include IEC60601-1. In addition, the TA1 linear actuator supports IP rating up to IP66W.
Other options include a manual or quick release system and Hall or Reed feedback sensors
General Features
- Voltage of motor: 24V DC
- Maximum load: 8,000N in push
- Maximum load: 4,000N in pull
- Maximum speed at full load: 23.4mm/s (with 1,000N in a push or pull condition)
- Stroke: 25~1000mm

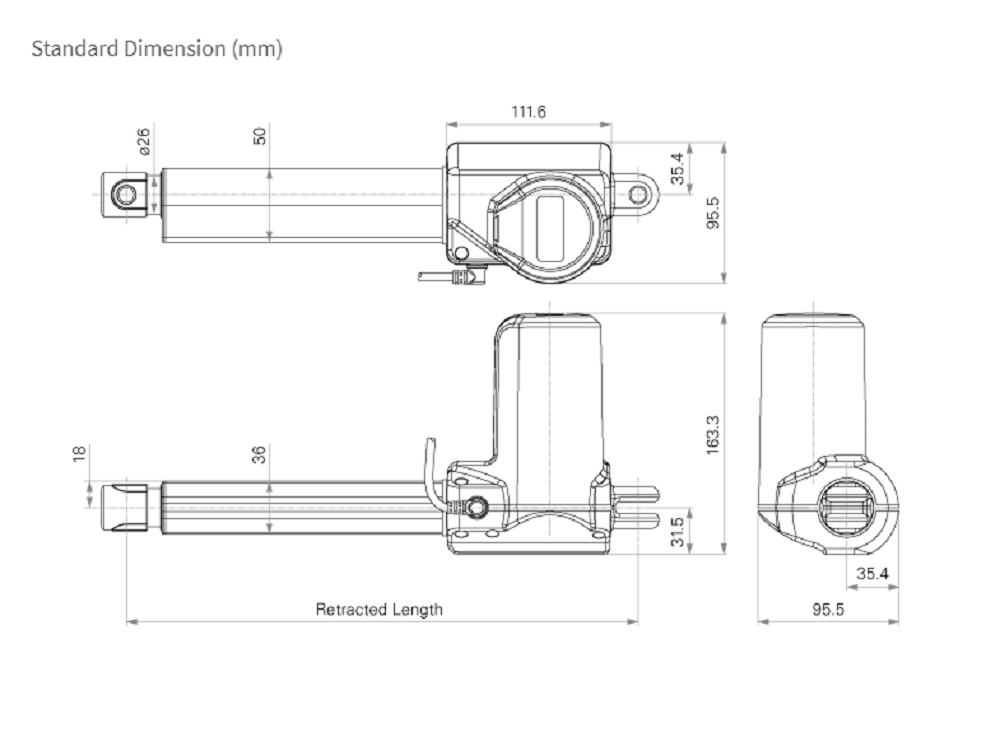

- Minimum installation dimension: ≥ Stroke+163mm
- Color: Gray
- IP rating: Up to IP66W
- Certificate: IEC60601-1, ES60601-1, EN60601-1-2, EMC
- Operational temperature range: +5°C~+45°C
- Options: Safety nut, quick release, Hall sensors
